Recovery Device Install Guide

Setting up your Recovery device is quick and straightforward. All you need is an active internet connection.

Mounting the Recovery Device

The Recovery device includes a standard wall mount for secure installation. Follow the instructions below to properly mount the device on a wall.

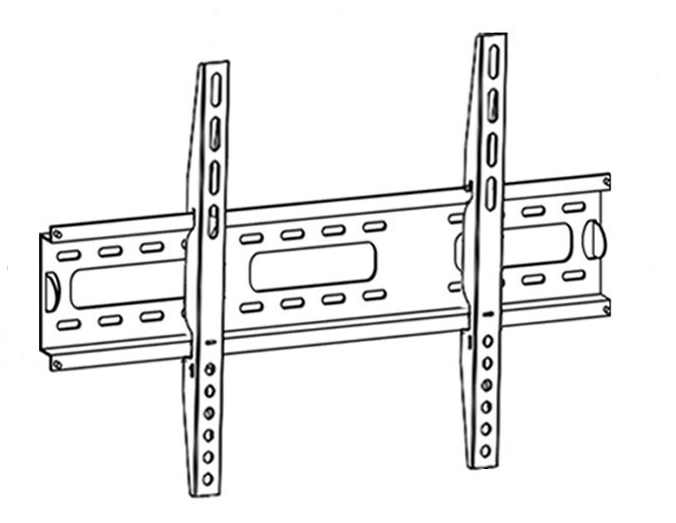

Mount Overview:

The included wall mount is a basic, non-adjustable VESA-compatible mount (400mm x 300mm) with a maximum weight capacity of 110 lbs. It consists of two main components:

• A mount plate to be installed on the wall

• Two mounting bars that attach to the back of the device

Mounting Instructions:

1. Attach the Mount Plate to the Wall

   • Identify the desired mounting location on the wall. Ideally 55in from the floor to the center of the display.

   • The mount plate must be secured into wall studs or other weight-bearing materials—do not mount directly to drywall.

   • Use appropriate screws and hardware (included) to securely fasten the mount plate.

2. Attach the Mounting Bars to the Device

   • Locate the VESA mounting holes on the back of the Recovery device.

   • Align the mounting bars with the holes using the variable sizing slots as needed.

   • Important: Make sure the angled cutouts on the bars are oriented downward—this is required for the bars to hook properly onto the mount plate.

   • Secure the bars using the included screws.

3. Mount the Device

   • Carefully lift the Recovery device and align the angled cutouts on the mounting bars with the top edge of the wall-mounted plate.

   • Lower the device so the bars hook into place on the mount plate.

   • Confirm that the device is securely seated and stable on the mount.

Caution:

Improper installation can result in injury or equipment damage. If you're unsure about mounting the device yourself, we recommend using a professional installer.

Setup Instructions

1. Power On

Turn on the Recovery device. Wait for the startup or intro video to finish playing.

2. Connect to Wi-Fi

If the device is not connected via Ethernet, you will be prompted to connect to a Wi-Fi network.

Note: To enable Wi-Fi, the included Wi-Fi antenna must be connected. You can find the antenna port in the upper-left corner on the back of the display.

3. Select a Network

Choose your Wi-Fi network from the list and enter the password when prompted.

4. Check for Updates

Once connected to the internet, the device will automatically check for and install any available updates.

After completing these steps, the device will launch the FOD app and you’re ready to begin!
